APS BLE Reader
Wiegand 26 bit output
Detects APS-BLE tags from up to 10 meters
Detection of Android Smartphone BLE tag (Android ver > 5.0)
Beeper and 2 leds included.
Configurable detection distance RSSI via Smartphone setup application
APS1003W - Wiegnad 26
APS1004W - Wiegnad 26 with memory
APS1004RS - RS232
APS1003w
APS1004W
APS1004RS
'קורא תגים BLE ומזהה קירבה של סמארטפונים המשדרים קוד ( BLE (Ver 5..0
חיבור WIEGAND 26
לד פנימי
זמזם פנימי
זיהוי מרחק 0-20 מטר*,
קונפיגורציה בעזרת אפליקציית אנדרואיד:
- קביעת מרחק גילוי מקסימלי (RSSi)
אופציה להגבלת קצב העדכון של תג שהתגלה בעזרת פרמטר (למשל דיווח כל 60 שניות)
APS BLE Controller and Reader
Wiegand 26 bit output
Open Collector output to drive external relay
Detetcs APS-BLE tags from up to 10 meters
Detection of Android Smartphone BLE tag (Android ver > 5.0)
Internal Beeper and led included.
Configurable detection distance RSSI via Smartphone setup application
Relay output delay configuratrion
APS2001C
APS BLE Controller and Reader
Ethernet Interface with TCPIP protocol that transfers the detected tags to the computer.
Detetcs APS-BLE tags from up to 10 meters
Detection of Android Smartphone BLE tag (Android ver > 5.0)
Internal Beeper and led included.
Digital output to drive external relay with commands controlled by the computer vis TCPIP commands.
Configurable detection distance RSSI via Smartphone setup application
Relay output delay configuratrion
APS3001E
APS BLE Controller and Reader for logistics applications
Ethernet Interface with TCPIP protocol that transfers the detected tags to the computer.
Detects APS-BLE tags from up to 10 meters
Detection of Android Smartphone BLE tag (Android ver > 5.0)
Configurable detection distance RSSI via Smartphone setup application
Windows applications showing the list of detected devices. SDK sources available.
APS4001E
'בקר עם יציאה דיגיטלית להפעלת ממסר חיצוני
קורא תגים BLE ומזהה קירבה של סמארטפונים המשדרים קוד ( BLE (Ver 5..0
יציאה דיגיטלית להפעלת ממסר חיצוני
לד פנימי
זמזם פנימי
זיהוי מרחק 0-20 מטר*,
קונפיגורציה בעזרת אפליקציית אנדרואיד:
- קביעת מרחק גילוי מקסימלי (RSSi)
- קביעת משך זמן הפעלת הממסר (זמן פתיחת השער)
'בקר עם יציאת Ethernet בתקשורת TCP-IP
הכולל יציאה O.C. להפעלת ממסר חיצוני
קורא תגים BLE ומזהה קירבה של סמארטפונים המשדרים קוד ( BLE (Ver 5..0
לד פנימי
זמזם פנימי
זיהוי מרחק 0-20 מטר*,
קונפיגורציה בעזרת אפליקציית אנדרואיד:
- קביעת מרחק גילוי מקסימלי (RSSi)
'בקר עם יציאת Ethernet בתקשורת UDP
קורא תגים BLE ומזהה קירבה של סמארטפונים המשדרים קוד ( BLE (Ver 5..0
זיהוי מרחק 0-20 מטר*,
מספר התגים המזוהים על ידי הקורא אינו מוגבל. אך מומלץ להגביל את המספר לעד 100 כדי לקבל זמן תגובה סביר.
קונפיגורציה בעזרת אפליקציית אנדרואיד:
- קביעת מרחק גילוי מקסימלי (RSSi)
אפליקציית Windows המציגה את אוסף התגים שמתגלים עם אינדיקציה לעוצמת הקליטה וזמן הגילוי
APS USB to BLE Cgateway enables easy control from PC via USB interface.
The device scans the area and the user can select to whch reader he wants to connect.
Once connected, the user can configure the paratemers, define users (add, remove or read).
Full customizzation is possible per demand.
APS BLE Controller and Reader for logistics applications
Ethernet Interface with Modbus TCP protocol that transfers the detected tags code and Rssi.
Detects APS-BLE tags from up to 10 meters
Detection of Android Smartphone BLE tag (Android ver > 5.0)
Configurable detection distance RSSI via Smartphone setup application
Windows applications showing the list of detected devices. SDK sources available.
APS5001M
APS-BLE-USB1

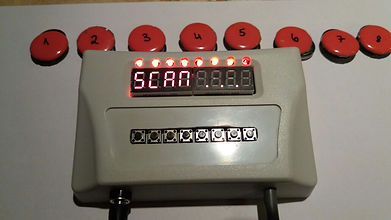

בקר הכולל קורא + יחידת תצוגה חכמה למעקב אחר פריטים בתא המטען או במחסן
הבקר מכיל סידרה של 8 לדים ומבצע מעקב רציף. במידה והפריט נמצא, הלד נדלק. במידה והפריט יצוא מטווח הקליטה, הלד נכבה.
ניתן להגדיר את קודי התגים באמצעות לחיצה על המפסק המתאים תוך קירוב התג לקורא.
החיבור בין הקורא ליחידת התצוגה על כבל בתקשורת WIEGAND (עד 10 מטר)
המרחק המקסימלי מושפע מתנאי השטח *
